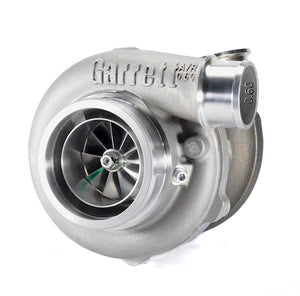

Garrett GTX3576R Gen 2 Dual V-Band 0.83 A/R

Garrett GTX3576R Gen 2 Dual V-Band 0.83 A/R Turbocharger

SKU: 856801-5059S

Features:

• Increased Horsepower Range

• Fully Machined Speed Sensor Port

• Improved Surge Resistant Ported Shroud Design

• Lightweight Billet Back Plate

• V-Band Compressor Outlet Configuration

• New Compressor Housing Aesthetics

Specifications:

• Approximate Horsepower Range for Engine Capacity: 400 - 750Hp (2.0 - 4.5L)

• Compressor Wheel Inducer Size (mm): 58

• Compressor Wheel Exducer Size (mm): 76

• Compressor Wheel Trim (mm): 58

• Turbine Wheel Inducer Size (mm): 68

• Turbine Wheel Exducer Size (mm): 62

• Turbine Wheel Trim: 84

• Wastegate: Free Float
