Holden Commodore (2013-2017) VF Harrop Ultimate Brake Upgrade BK-ORGED-ULT-VF

Holden Commodore (2013-2017) VF Harrop Ultimate Brake Upgrade BK-ORGED-ULT-VF-VF

_x000D_

Look no further than the Harrop Forged Ultimate kit to satisfy the demands of serious street and track enthusiasts.

_x000D_

Developed in line with our Motorsport heritage, the rotor and caliper design pushes the boundaries of extreme braking to achieve world class performance. The kit provides the ultimate in performance while maintaining perfect braking balance under all driving conditions.

_x000D_

The 2-piece bobbin drive system utilised in the front rotors is the same system that is used in motorsport applications to handle the heat differential and expansion between the cast iron rotors and aluminium adaptors (hats).

_x000D_

Front Rotors: 381mm x 32mm 2-Piece, directional 48 vane, bobbin drive with 24 broken slots.

_x000D_

Rear Rotors: 355mm x 28mm 2-Piece, directional 36 vane with 24 broken slots.

_x000D_

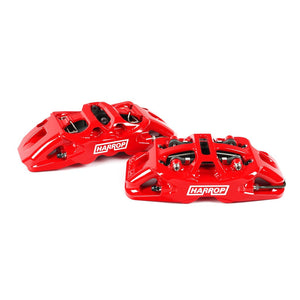

Front Calipers: 6 Piston Forged aluminium monobloc calipers available in selected colours.

_x000D_

Rear Calipers: 4 Piston Forged aluminium monobloc calipers available in selected colours.

_x000D_



_x000D_

Additional features include;

_x000D_

_x000D_
• 6066-T6 Aluminium billet calipers
_x000D_
• Aluminium pistons for light weight and better heat transfer
_x000D_
• Radial mount design caliper with structural aluminium caliper mounting bracket
_x000D_
• Closed top bridge design for added strength
_x000D_
• High grade quality fasteners
_x000D_

_x000D_


Colours: Black, Red, Yellow & Electro Nickel Plating (ENP)

_x000D_

Options:

_x000D_

_x000D_
• Braided brake lines
_x000D_
• Front and rear brake pads
_x000D_
