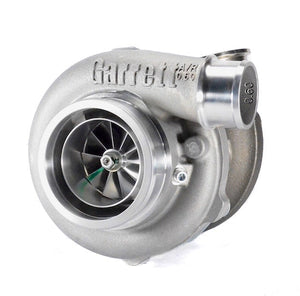

Turbo GTX2867R Gen II T25 5 Bolt 0.64 A/R Turbocharger

_x000D_



_x000D_

Turbo GTX2867R Gen II T25 5 Bolt 0.64 A/R Turbocharger

_x000D_

SKU: 856800-5007S

_x000D_

Features:

_x000D_

• Increased Horsepower Range

_x000D_

• Fully Machined Speed Sensor Port

_x000D_

• Improved Surge Resistant Ported Shroud Design

_x000D_

• Lightweight Billet Back Plate

_x000D_

• 5-bolt Turbine Outlet Configuration

_x000D_

• New Compressor Housing Aesthetics

_x000D_



_x000D_

Specifications:

_x000D_

_x000D_
• Approximate Horsepower Range for Engine Capacity: 275 - 550Hp (1.4 - 2.5L)
_x000D_
• Compressor Wheel Inducer Size (mm): 50
_x000D_
• Compressor Wheel Exducer Size (mm): 67
_x000D_
• Compressor Wheel Trim (mm): 55
_x000D_
• Turbine Wheel Inducer Size (mm): 54
_x000D_
• Turbine Wheel Exducer Size (mm): 47
_x000D_
• Turbine Wheel Trim: 76
_x000D_
• Wastegate: Wastegated
