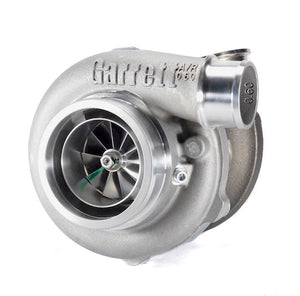

Turbo GTX2867R Gen II T25 5 Bolt 0.86 A/R Turbocharger

Turbo GTX2867R Gen II T25 5 Bolt 0.86 A/R Turbocharger

SKU: 856800-5008S

Features:

• Increased Horsepower Range

• Fully Machined Speed Sensor Port

• Improved Surge Resistant Ported Shroud Design

• Lightweight Billet Back Plate

• V-Band Compressor Outlet Configuration

• New Compressor Housing Aesthetics

Specifications:

• Approximate Horsepower Range for Engine Capacity: 275 - 550Hp (1.4 - 2.5L)
• Compressor Wheel Inducer Size (mm): 50
• Compressor Wheel Exducer Size (mm): 67
• Compressor Wheel Trim (mm): 55
• Turbine Wheel Inducer Size (mm): 54
• Turbine Wheel Exducer Size (mm): 47
• Turbine Wheel Trim: 76
• Wastegate: Free Float
