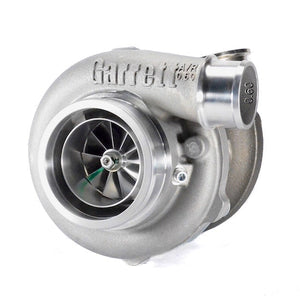

Turbo GTX3071R Gen II T3 V-Band 0.82 A/R Turbocharger

Turbo GTX3071R Gen II T3 V-Band 0.82 A/R Turbocharger

SKU: 856801-5005S

Features:

• Increased Horsepower Range

• Fully Machined Speed Sensor Port

• Improved Surge Resistant Ported Shroud Design

• Lightweight Billet Back Plate

• V-Band Compressor Outlet Configuration

• New Compressor Housing Aesthetics

Specifications:

• Approximate Horsepower Range for Engine Capacity: 340 - 650Hp (1.8 - 3.0L)
• Compressor Wheel Inducer Size (mm): 54
• Compressor Wheel Exducer Size (mm): 71
• Compressor Wheel Trim (mm): 58
• Turbine Wheel Inducer Size (mm): 60
• Turbine Wheel Exducer Size (mm): 55
• Turbine Wheel Trim: 84
• Wastegate: Free Float
