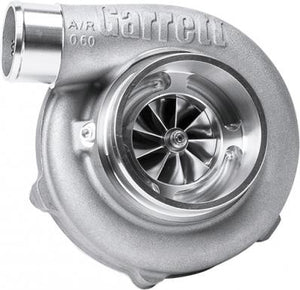

Turbo GTX3582R Gen II Reverse Dual V-Band 0.83 A/R Turbocharger

Turbo GTX3582R Gen II Reverse Dual V-Band 0.83 A/R Turbocharger

SKU: 856803-5005S

Features:

• Increased Horsepower Range

• Fully Machined Speed Sensor Port

• Improved Surge Resistant Ported Shroud Design

• Lightweight Billet Back Plate

• V-Band Compressor Outlet Configuration

• New Compressor Housing Aesthetics

• Specifications:
  • Approximate Horsepower Range for Engine Capacity: 400 - 750Hp (1.8 - 3.0L)
  • Compressor Wheel Inducer Size (mm): 58
  • Compressor Wheel Exducer Size (mm): 76
  • Compressor Wheel Trim (mm): 58
  • Turbine Wheel Inducer Size (mm): 60
  • Turbine Wheel Exducer Size (mm): 55
  • Turbine Wheel Trim: 84
  • Wastegate: Wastegated
