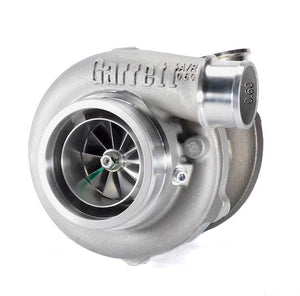

Turbo GTX3582R Gen II T4 / V-Band 1.06 A/R Turbocharger

Turbo GTX3582R Gen II T4 / V-Band 1.06 A/R Turbocharger

SKU: 856801-5070S

Features:

• Increased Horsepower Range

• Fully Machined Speed Sensor Port

• Improved Surge Resistant Ported Shroud Design

• Lightweight Billet Back Plate

• V-Band Compressor Outlet Configuration

• New Compressor Housing Aesthetics

• Specifications:
  • Approximate Horsepower Range for Engine Capacity: 450 - 850Hp (2.0 - 4.5L)
  • Compressor Wheel Inducer Size (mm): 66
  • Compressor Wheel Exducer Size (mm): 82
  • Compressor Wheel Trim (mm): 64
  • Turbine Wheel Inducer Size (mm): 68
  • Turbine Wheel Exducer Size (mm): 62
  • Turbine Wheel Trim: 84
  • Wastegate: Free Float
